3S012-020-A Series

SKU: 3S012-020-A Series

Installation and Operation:



To connect the valve Inlet and Outlet:

Connect the inlet and outlet in the direction of the arrow marked on the valve.



To install coil:

Put the coil onto the armature tube of the valve. Put the lock-washer and nut onto the armature tube. Hand tighten the nut, then use a wrench to tighten the nut to a quarter turn; do not over-tighten the nut, it may cause the armature tube to fail pre-maturely.



To connect DIN coil:

1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.

2. From the screw opening, push the terminal block out from the plastic housing.

3. Note the 1, 2 and ground markings on the underside of DIN enclosure.

4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.

5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect



6. Do not energize the coil without installing it onto the valve, it will burn the coil and create fire hazards.



Safety Note: Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil. The coil temperature may become hot after being energized for extended periods, but it is normal. Do not energize the coil without installing it onto the valve or connect the coil to a wrong voltage, as it may overheat and damage the coil; although the coil is made of flame retarded material, misuse of the coil in this manner could create fire hazards and generate smoke or burning odor which indicates excessive coil temperature and should disconnect the power to the coil immediately.

  • Product Specifications

    Valve Model 3S012-1/8-A 3S012-1/4-A 3S020-1/8-A 3S020-1/4-A
    Port Size (NPT) 1/8 1/4 1/8 1/4

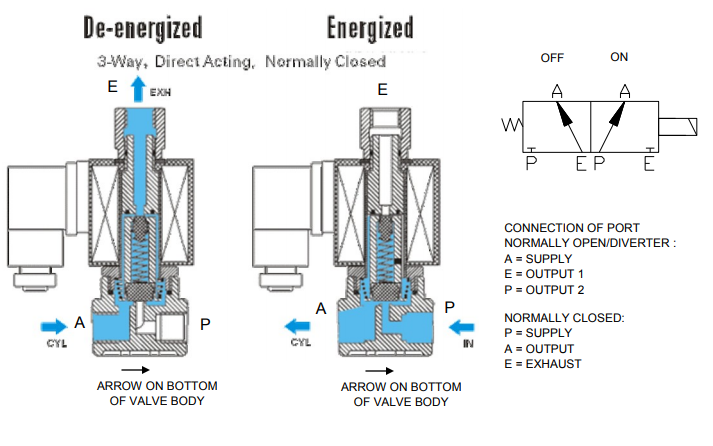

    Valve Type

    3 Way, Universal Valve that can be used as:

    1. Normally Closed (NC) or

    2. Normally Open (NO) or

    3. Diverter Valve (divert one supply to two outlets)

    3 Way, Universal Valve that can be used as:

    1. Normally Closed (NC) or

    2. Normally Open (NO) or 3. Diverter Valve (divert one supply to two outlets)

    3 Way, Universal Valve that can be used as:

    1. Normally Closed (NC) or 2. Normally Open (NO) or 3. Diverter Valve (divert one supply to two outlets)

    3 Way, Universal Valve that can be used as:

    1. Normally Closed (NC) or

    2. Normally Open (NO) or 3. Diverter Valve (divert one supply to two outlets)

    Action Direct Acting, Response Time Direct Acting, Response Time Direct Acting, Response Time Direct Acting, Response Time
    Orifice, Cv 1.2mm, Cv=0.05 1.2mm, Cv=0.05 2.0mm, Cv=0.20 2.0mm, Cv=0.20
    Operating Pressure

    Normally Closed: Vacuum to 60 PSI

    Normally Open & Diverter: Vacuum to 150 PSI

    Normally Closed: Vacuum to 60 PSI

    Normally Open & Diverter: Vacuum to 150 PSI

    Normally Closed: Vacuum to 30 PSI

    Normally Open & Diverter: Vacuum to 100 PSI

    Normally Closed: Vacuum to 30 PSI

    Normally Open & Diverter: Vacuum to 100 PSI

    Operating Temperature NBR Seal:14 to 176°F (-10 to 80°C); Option: Viton Seal: 5 to 248°F (-15 to 120°C) NBR Seal:14 to 176°F (-10 to 80°C); Option: Viton Seal: 5 to 248°F (-15 to 120°C) NBR Seal:14 to 176°F (-10 to 80°C); Option: Viton Seal: 5 to 248°F (-15 to 120°C) NBR Seal:14 to 176°F (-10 to 80°C); Option: Viton Seal: 5 to 248°F (-15 to 120°C)
    Body Materials Stainless Steel Stainless Steel Stainless Steel Stainless Steel
    Seal Materials NBR, Option: Viton NBR, Option: Viton NBR, Option: Viton NBR, Option: Viton
    Coil Duty H Class, IP65, 100% ED (Continuous Duty) H Class, IP65, 100% ED (Continuous Duty) H Class, IP65, 100% ED (Continuous Duty) H Class, IP65, 100% ED (Continuous Duty)
    Voltage Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz) Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz) Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz) Options: 12, 24 VDC; 24,110/120, 220/240 VAC (50/60Hz)
    Voltage Tolerance ±10% of Specified voltage ±10% of Specified voltage ±10% of Specified voltage ±10% of Specified voltage
    Coil Power 3 to 6.5W 3 to 6.5W 3 to 6.5W 3 to 6.5W
    Electrical Connections DIN DIN DIN DIN
    Installation No Orientation Requirement No Orientation Requirement No Orientation Requirement No Orientation Requirement
    Service Air, Liquid, Oil, Water Air, Liquid, Oil, Water Air, Liquid, Oil, Water Air, Liquid, Oil, Water
