2V025-035 Series

Operation: The 2V025 series solenoid valve is a direct acting valve & does not require a minimum differential pressure to operate. The cross-section below shows the valve in a closed (de-energized) state. When energized, the plunger directly lifts the isolated diaphragm, allowing the working medium to pass through the valve orifice. When de-energized the spring force returns the diaphragm to the valve orifice & seals the valve.



To Connect the Valve Inlet & Outlet:
• Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve

To Install the Coil:
• Put the coils on to the armture tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn. Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.

To Connect a DIN Coil:
1. Remove the Philips-head screw from the plastic DIN housing & unplug it from the DIN coil.
2. From the screw opening, push the terminal block out from the plastic DIN housing.
3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.
4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.
5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.

Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.

Safety Note: Standard valves are supplied with continuous duty coils. The proper class of insulation for the service is indicated on the coil body. The coil temperature may rise significantly if energized for extended periods—this is normal. Although the coil is made of flame-retardant material, misuse of the coil could create fire hazards & generate smoke and/or a burning odor. If these conditions are encountered, the coil temperature has risen above safe levels and the power should be disconnected immediately.

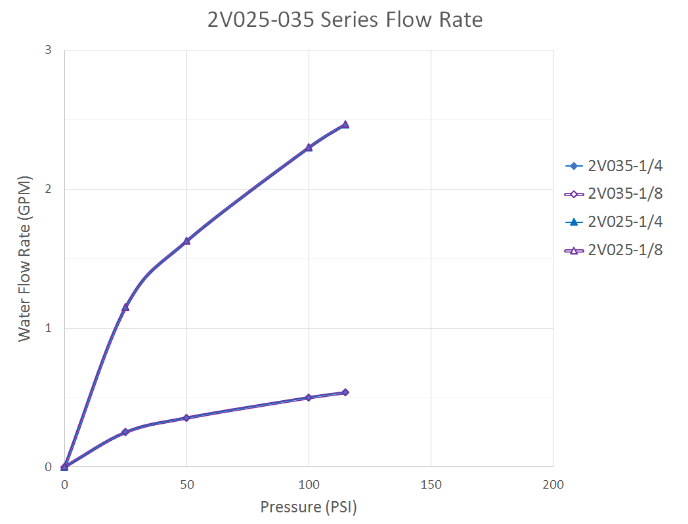

  • Product Specifications

    Model 2V025-1/8 2V025-1/4 2V035-1/8 2V035-1/4
    Port Size 1/8" NPT 1/4" NPT 1/8" NPT 1/4" NPT
    Oriface 2mm 2mm 1mm 1mm
    CV 0.23 0.23 0.05 0.05
    Valve Type 2-Way (2/2/1), 2-Position 2-Way (2/2/1), 2-Position 3-Way (3/2/1), 2-Position 3-Way (3/2/1), 2-Position
    Action Body Ported, Spring Return Body Ported, Spring Return Body Ported, Spring Return Body Ported, Spring Return
    De-Energized State Normally Closed Normally Closed Normally Closed Normally Closed
    Body Material Valve Body: Anodized Aluminum
    Armature Assembly: Brass (Option: Stainless Steel)
    Valve Body: Anodized Aluminum
    Armature Assembly: Brass (Option: Stainless Steel)
    Valve Body: Anodized Aluminum
    Armature Assembly: Brass (Option: Stainless Steel)
    Valve Body: Anodized Aluminum
    Armature Assembly: Brass (Option: Stainless Steel)
    Seal Material NBR (Buna) NBR (Buna) NBR (Buna) NBR (Buna)
    Operating Temp -4°F to 140°F (-20°C to 60°C) -4°F to 140°F (-20°C to 60°C) -4°F to 140°F (-20°C to 60°C) -4°F to 140°F (-20°C to 60°C)
    Operating Pressure Vacuum to 115 PSI Vacuum to 115 PSI Vacuum to 115 PSI Vacuum to 115 PSI
    Electrical connection Standard Options: DIN 43650A
    Grommet

    Upgrade Options: Explosion Proof Coil (200C-E)
    ATEX Explosion Proof Coil (200C-ATEX)
    Standard Options: DIN 43650A
    Grommet

    Upgrade Options: Explosion Proof Coil (200C-E)
    ATEX Explosion Proof Coil (200C-ATEX)
    Standard Options: DIN 43650A
    Grommet

    Upgrade Options: Explosion Proof Coil (200C-E)
    ATEX Explosion Proof Coil (200C-ATEX)
    Standard Options: DIN 43650A
    Grommet

    Upgrade Options: Explosion Proof Coil (200C-E)
    ATEX Explosion Proof Coil (200C-ATEX)
    Coil Power  3-6.5W 3-6.5W 3-6.5W 3-6.5W
    Voltage Options 12VDC
    24VDC
    24VAC (50/60Hz)
    110/120VAC (50/60Hz)
    220/240VAC (50/60Hz)
    12VDC
    24VDC
    24VAC (50/60Hz)
    110/120VAC (50/60Hz)
    220/240VAC (50/60Hz)
    12VDC
    24VDC
    24VAC (50/60Hz)
    110/120VAC (50/60Hz)
    220/240VAC (50/60Hz)
    12VDC
    24VDC
    24VAC (50/60Hz)
    110/120VAC (50/60Hz)
    220/240VAC (50/60Hz)
    Voltage Tolerance ±10% of Specified Voltage ±10% of Specified Voltage ±10% of Specified Voltage ±10% of Specified Voltage
    Ingress Protection IP65 IP65 IP65 IP65
    Insulation Class F Class F Class F Class F Class
    Coil Duty 100% ED, Continuous Duty 100% ED, Continuous Duty 100% ED, Continuous Duty 100% ED, Continuous Duty
    Installation No Orientation Requirement
    Optimum Position: Flow Horizontal and Solenoid Vertical
    No Orientation Requirement
    Optimum Position: Flow Horizontal and Solenoid Vertical
    No Orientation Requirement
    Optimum Position: Flow Horizontal and Solenoid Vertical
    No Orientation Requirement
    Optimum Position: Flow Horizontal and Solenoid Vertical
    Service Liquid, Water, Air, Inert Gas, Vacuum Liquid, Water, Air, Inert Gas, Vacuum Liquid, Water, Air, Inert Gas, Vacuum Liquid, Water, Air, Inert Gas, Vacuum
